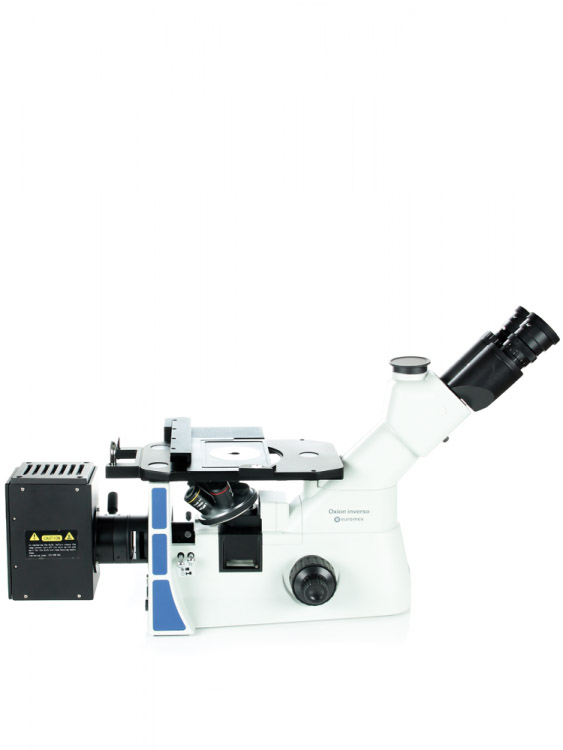

Oxion Inverso Material Science

Mikroskopen i Oxion material science är speciellt utvecklade för observation av stora materialdelar av metall, trä, plast med mera.
Oxion Inverso material science kommer med en kraftfull 50 W halogenljuskälla för ljusfältskontrast och ett stort mekaniskt objektbord. Polariseringsfiltren och färgfiltren gör att detta mikroskop lämpar sig för ett brett spann av applikationer. Tack vare högupplöst optik och delar i högsta kvalitet så kan dessa mikroskop användas för många rutin- och forskningsapplikationer.

EYEPIECES
Pair of DIN HWF Plan 10x/22 mm eyepieces

NOSEPIECES
Revolving quintuple nosepiece on ball-bearings

HEADS
Trinocular 45° inclined tubes with extended low and high positions for eyepieces. One diopter adjustment on left eyepiece. Interpupillary distance of 54 to 75 mm. Trinocular head with 100-0 % and 80-20 % positions

OBJECTIVES

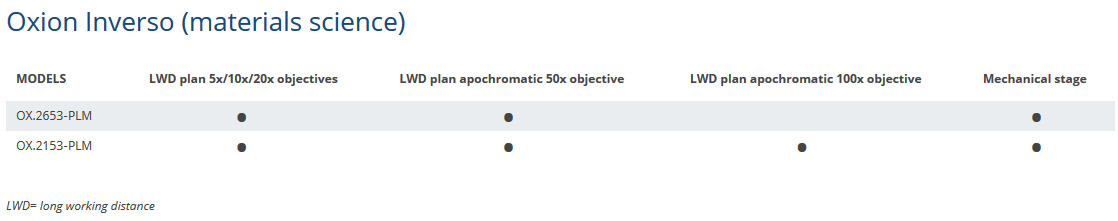

Infinity color corrected long working distance 5x/0.15, 10x/0.14, 20x/0.45 plan achromatic IOS objectives and a plan semi apochromatic S50x/0.55 IOS objective. Model OX.2153-PLM also has plan semi apochromatic S100x/0.80 IOS objective. Not corrected for cover glass thickness.
All optics are anti-fungus treated and anti-reflection coated for maximum light troughout

STAGE

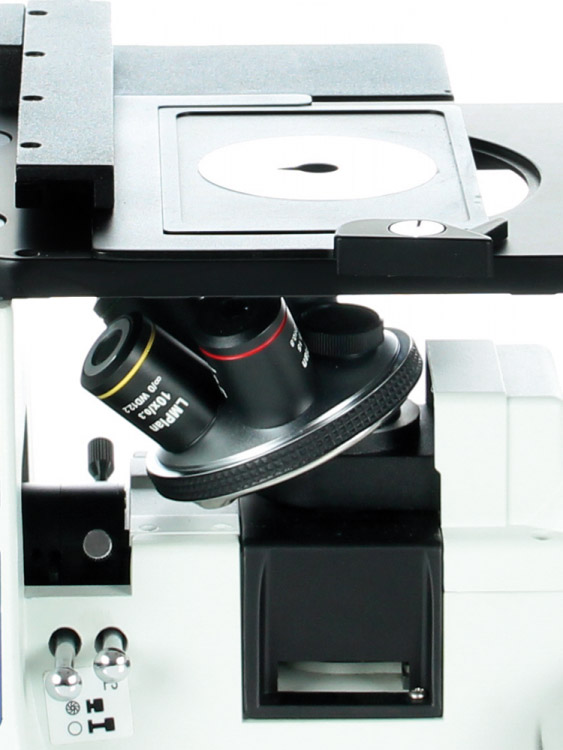

Large stage 250 x 230 mm equipped with a coaxial mechanical 120 x 78 mm X-Y stage, delivered with:
- metallic insert standard with Ø 12 mm diameter hole and Ø 25 mm diameter hole
- metallic insert with hole for mechanical stage

CONDENSER
Abbe condenser with iris diaphragm

FOCUSING ADJUSTMENT
Coaxial 25 mm coarse and fine adjustments, 2 µm precision and with friction adjustment

ILLUMINATION
Transmitted Köhler 50 W halogen Intensity adjustable with internal 100-240 V power supply. Fuse holder 3.15 A / 250 V

POLARIZATION
Standard polarization filter and 360° rotating analyzer

FILTERS
Standard blue and green filter

PACKAGING
Supplied with power cord, dust cover, blue and green filters and user manual. Microscope supplied in an aluminium transport case
